Product Details
The plastic-coated fabric positive-pressure air duct uses a pull-type connector, featuring a smooth fabric surface, low resistance, minimal air leakage, high duct strength, tear resistance, flame resistance, anti-static properties, aging resistance, light weight, small size, easy installation, and time-saving benefits.

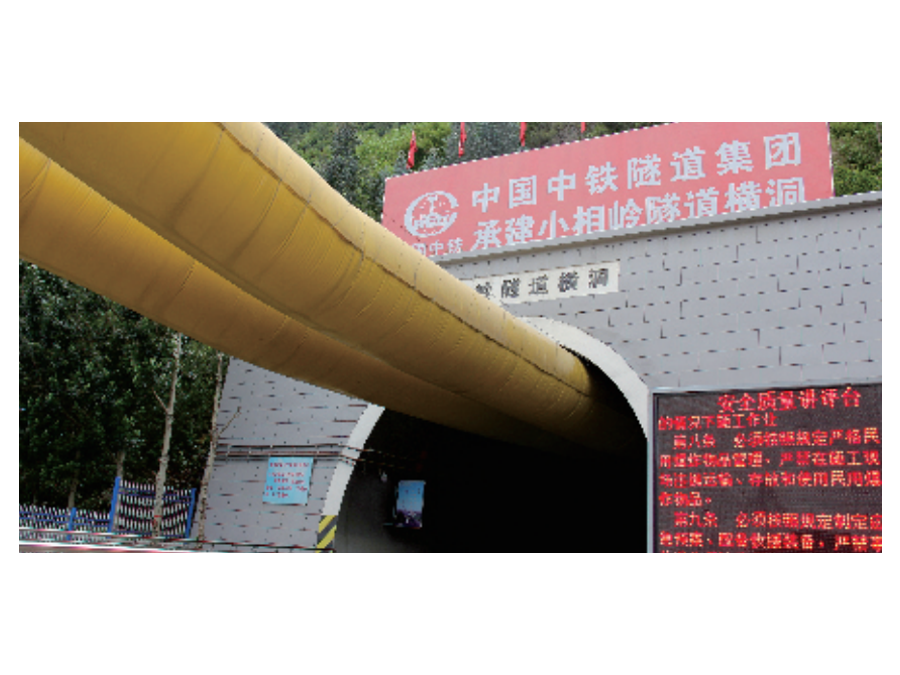

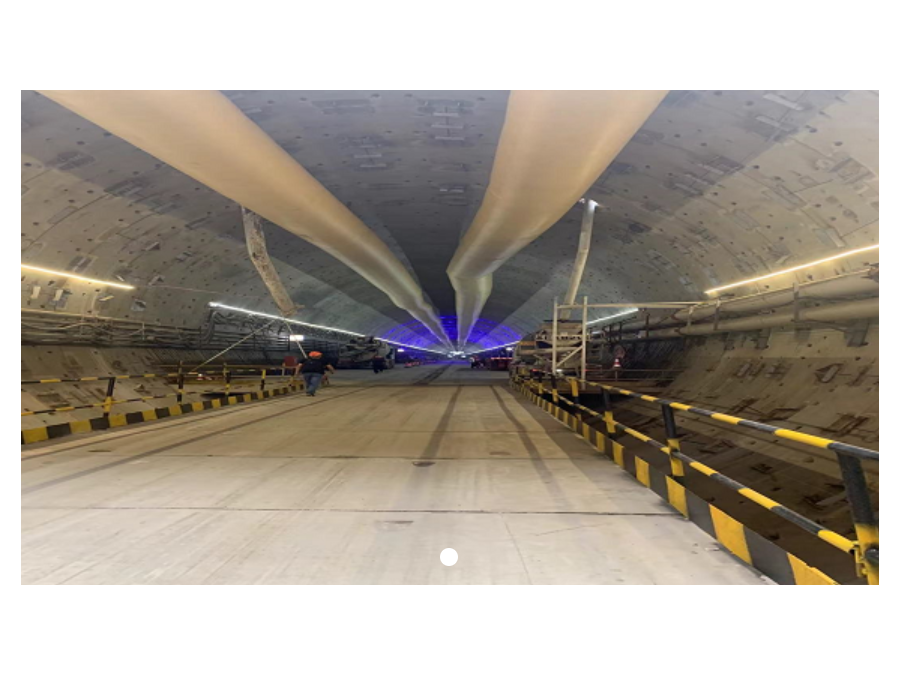

Tested by the national testing center, the air duct's pressure resistance exceeds 16000Pa, suitable for ventilation in long and high-altitude tunnel constructions.
Main Technical Performance of Air Duct
| Item | Technical Data |
| Average air leakage rate per 100 meters β(%) | ≤0.5 |
| Air resistance per 100 meters (N·s 2/m8) | ≤1 |
| Air duct pressure resistance (Pa) | ≥16000 |
| Diameter expansion rate (%) | ≤1 |
| Fabric tear strength (N) | Warp and weft ≥500 |
| Fabric tensile strength (N/50mm) | Warp and weft ≥2000 |
| Welding seam tensile strength (N/50mm) | Warp and weft ≥2000 |
| Surface resistance (Ω) | ≤3x10 8 |
| Air duct diameter (mm) | 600~2600 |
